House Design: Step by Step Guide

Printer-friendly version
Not sure where to start with designing your new home? Follow architect Opinder Liddar's guide to the four stages of house design
House design sketch

If you’re a first time self builder it’s hard to know how to start planning your design. To make the process simpler, you can categorise it into four stages. Factors from each stage must be evaluated, explored and assimilated into the design of your proposed building.

Stage one

The first step is to develop an overall project brief. This is not a static document, it evolves and is continually refined as the design develops.

The brief covers key aspects of the project, such as the number of bedrooms, maximising natural light, high levels of insulation or other sustainable standards that are important to you. It will involve elements of how you want to live, for example, open plan or individual rooms.

It will also set out your aspirations, such as ‘I want to see the sun when I wake up’ or ‘this piece of art/furniture is significant to me and I want the living room to incorporate it as a focal feature’.

As the design develops it may be influenced by planning requirements and by your cost plan. Nevertheless, think positively and without limitations at this starting point.

Stage two

The next stage is to analyse the site - this will play a significant part in the realised design. Setting aside local planning requirements for now; your site analysis should address the following elements:

  • Orientation – for passive solar gain and siting solar panels, south facing elevations will be important. Also consider if you need to screen the house from traffic and noise
  • Views – arrange the key rooms (living and bedrooms) to take advantage of these
  • Proximity of neighbouring buildings and windows – plan your property so that you’re not overlooking your neighbours. Ideally, the distance between your bedroom windows and those of your neighbours will be at least 12m. The distance between neighbouring living rooms would usually be a minimum of 21m
  • Access and car parking – a three bed house will usually need at least two spaces. So, assess whether there is sufficient space for parking, and if you can get the right vision splay if you’re forming a new access point
  • Trees – well established trees can contribute to the visual appeal of your site. If you’re unable to remove them for planning reasons, your design could either incorporate them or be restricted by them

In an ideal world you could accommodate all of these factors easily. However, sites are never perfect!

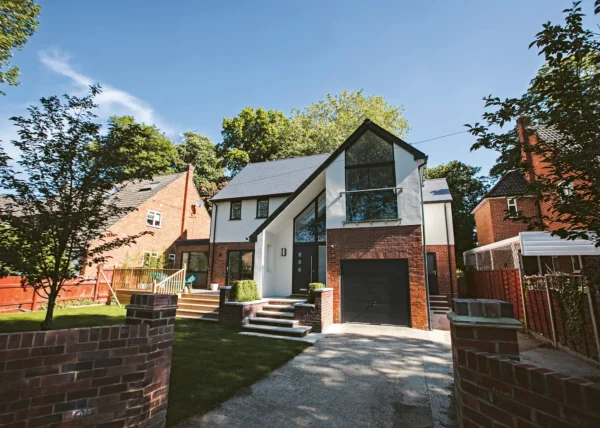

You need to work with a design professional to creatively incorporate them into your design. My firm, lapd architects, designed a modern home for a client where the best views were to the west, but we wanted to maximise passive solar gains from the south.

In this instance the use of a curved rear elevation gave us the best of both worlds.

Stage three

The next phase is to establish the amount of accommodation required and your preferred building style.

This will be sketched out over the site plan and your home’s design will be adapted based on certain influences from your site analysis. How rooms flow from the entrances to formal and informal spaces is important, too.

The sizes of different rooms will be influenced by the elements outlined in your project brief, but ultimately by the size of your site.

Steps to future proofing your house

  • Consider your future living needs in the design of your home - should it cater for older children or older family members?
  • Think about including an area that would adapt to a self contained space providing sleeping, living, bathroom and cooking facilities, ideally on the ground floor – you may not be as able bodied in later life.
  • Sustainability is a major consideration for self builders. High levels of insulation and air tightness can help reduce future running costs.
  • You may want to install alternative means of energy generation, such as heat pumps or solar panels so you're less reliant on conventional energy sources and therefore less exposed to future power crises and rising fuel costs.
  • To get the most out of renewables, the technology needs to be incorporated at the design stage rather than stuck on as an afterthought.

Your designer will need to analyse the day-to-day operation of your home and put together a coherent plan to deliver something that addresses your needs within the volume of your new property.

To steer your style, look at neighbouring buildings and the local area to judge the choice of materials for your building. You can introduce new materials but use them in a relevant context so your house is at home in its surrounding area.

As your design develops, the footprint of your home will be established and your designer will show you 2D and 3D drawings including sections and elevations – this is where the style of the building will be developed.

Express your likes and dislikes, but keep an open mind. You are appointing and paying for a designer who should take on board your needs and desires to produce a design that encompasses them.

By accepting some flexibility and being receptive to new ideas (designers often suggest alternatives for consideration) you could end up with a more efficient or attractive scheme, which may be quite different to your original style ideas.

Stage four

Once your initial design has been developed you will have a good first impression of the home you’ll end up building. The next step is to consider any relevant local planning requirements, and any restrictions that may be in place if your site falls within an area of greenbelt.

Once you’ve addressed these areas, and checked the scheme against your original brief, stop to check the costs involved. Ask your design professional to carry out a budget check before a planning application is submitted – you don’t want to go through the planning process only to get permission for a house that you can’t afford to build.

Creating your own home, a new build or a refurbishment, is a fantastic opportunity. It can be an enriching experience, albeit with some manageable challenges along the way.

Having a good understanding of the design process will help to ensure that you get what you want at the end of the project. By investing time at the beginning, you’re more likely to enjoy your project and still have finances at the end to enjoy the other good things that life has to offer.

Author: Opinder Liddar  Published: September 2012

Also related to this article

2 comments

Bgregster
Posted on
10/03/14

Stage 4 seems very late to find out that the design is double your budget. I have just developed a brief in the fashion described and already been told by my architects that I can only afford a house that is half the size I had outlined (their guidance differs from the build-it guides, which I had based my assumptions on, by approximately 180%!!). I'm glad I got the advice before I committed funds to the architect but unfortunately, I have already bought the plot and it could mean I simply can't afford to build an appropriate sized house. Conversely, I don't know if the architect is over-egging it so I'm extremely confused, frustrated and worried.

Opinder Liddar
Posted on
13/03/14

There are many stages to go through to continue a project and it's good you've had the reality check early on as we suggested. Imagine if you'd got approval and only then realised you couldn't afford it - you'd have spent so much more on fees!

The next phase for you is to consider what the essential elements of the brief are, whether any work could be done later (when you have more budget) and whether the overall level of specification for the project is right. All these will influence the cost, but as the figures are high you will almost certainly need to compromise on some of your wishes and probably scale back on the proposal in some way.
