The R-Wall Under Slab System is engineered to eliminate the thermal inefficiencies caused by cold bridging, commonly found in traditional ground-bearing slabs. Suitable for all construction types, but primarily created to integrate seamlessly with the R-Wall ICF formwork, creating a continuous insulation envelope around the entire structure. This results in zero cold bridging and significantly enhances the building’s energy efficiency.
Installation & Structural Benefits

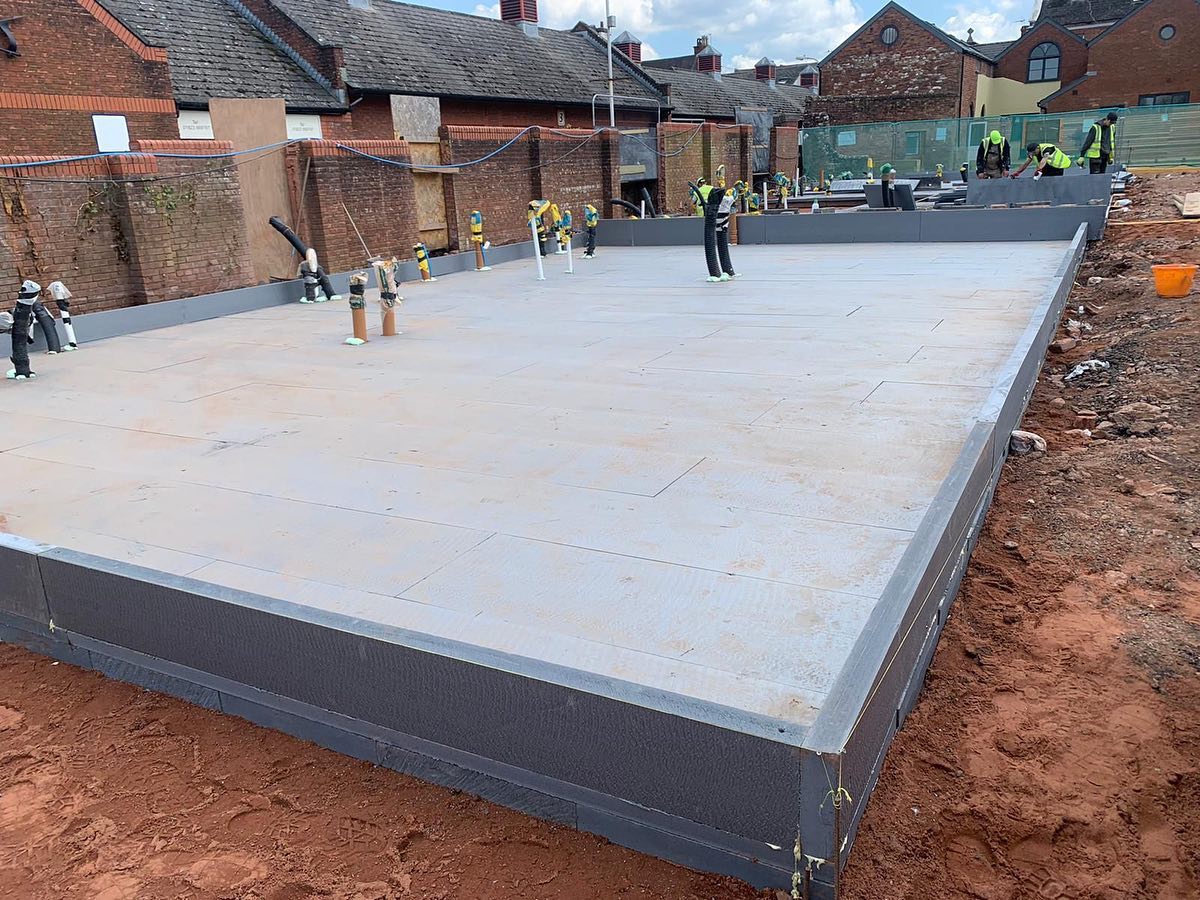

- No footings required: Insulation is cross-laminated over a sand-blinded substrate.

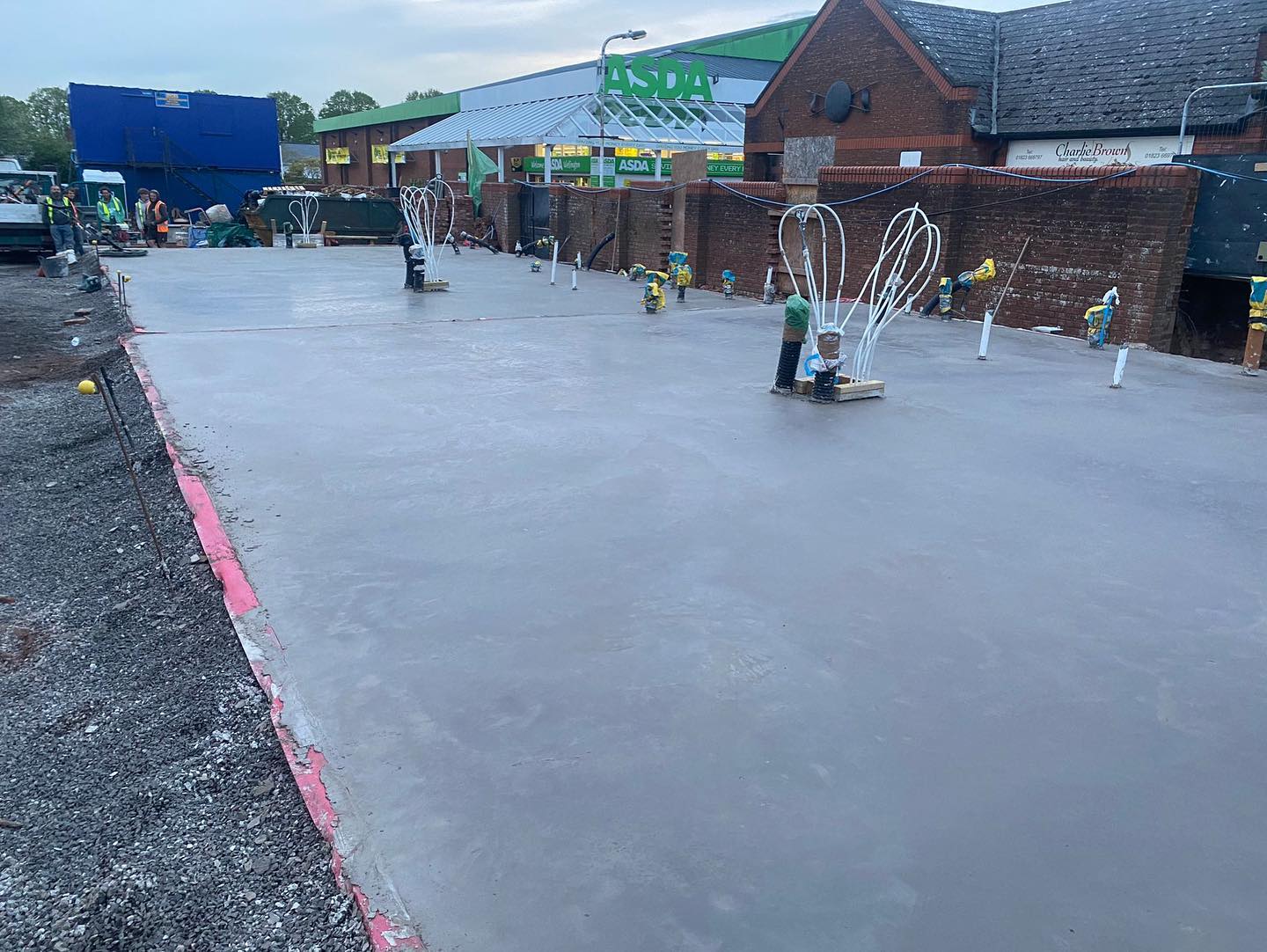

- Concrete poured to upstand: This forms the finished floor surface or slab.
- Reduced concrete usage: Minimizes environmental impact and boosts thermal mass performance.
- Versatile application: Suitable for both above-ground and below-ground installations.
Sustainability & Performance
- Closed-cell, water-resistant insulation
-
Eco-conscious manufacturing:
BREEAM A Rating, Global Warming Potential < 5, Ozone Depletion Potential = 0 - Thermal Conductivity: 0.030 W/m·K
- U-values: As low as 0.09 W/m²·K
Product Specifications
- Board Size: 2500mm x 600mm
- Thickness Options: 50mm, 75mm, 100mm, 125mm, 150mm
-
Compressive Strength:
300 kPa (Domestic), 500 kPa (Commercial), 700 kPa (Heavy Industrial) -
Installation Method:

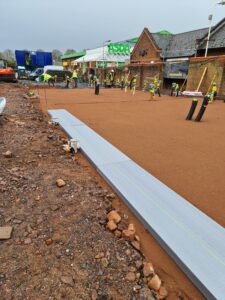

Double-layer cross lamination, concrete poured to insulated upstand
For more information, visit our website or send us an email with your floor area in square meters for a quote
