Ultimate Guide to Ground Source Heat Pumps

Find out how this renewable technology works, the key benefits and whether it could be the right fit for your project with Nigel Griffiths' in-depth advice
Build It magazine expert Nigel Griffiths
by Nigel Griffiths
15th July 2019

Ground source heat pumps (GSHPs) take low-grade energy from the ground. They then convert it into usable energy at a higher temperature for space heating and water heating.

The easy way to understand it is that the pump works on the same principle as a refrigerator, but operating in reverse.

The sun heats the ground in the United Kingdom to an average temperature of approximately 12°C. In this sense, GSHPs are actually making use of solar energy and could be considered renewable. But it’s worth bearing in mind that they still require mains power to run the pump.

How does a Ground Source Heat Pump work?

Most domestic ground source heat pump installations use closed-loop systems.

This means that a system pumps  the collector fluid (water and anti-freeze) through a sealed loop. The liquid then draws in warmth from the ground and returns at a higher temperature.

The heat pump compresses the collector fluid and subsequently the distribution system (typically underfloor heating) absorbs the heat. The system then reduces the pressure by expanding the fluid. This causes the fluid to cool down before it returns to the underground collector and the process starts again.

Ground source heat pump collector loop
When there is enough land, you can install horizontal loops 1.5m below the surface.

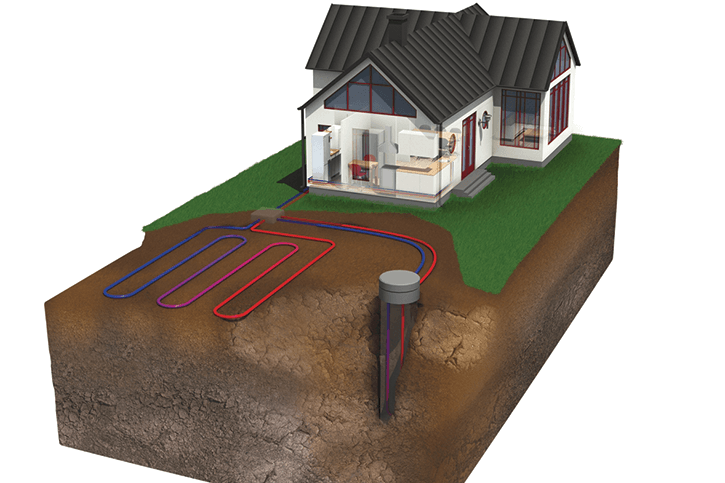

Two types of heat pump coil: vertical bore hole and horizontal ground loop
If the plot is small, pipes run vertically between 50m -90m deep.

Where there is sufficient land available, you can use a horizontal collection loop, with pipes laid in trenches that lie approximately 1.5m below ground level. If space is tight, the alternative is to install a vertical solution, which generally reaches between 50m and 90m deep.

It’s worth bearing in mind that heat pumps can also supply cooling. Demand for this could become significant if climate change accelerates dramatically.

Learn More: Ground Source Heat Pump FAQ

Heat pump efficiency

The installed performance of a GSHP is a huge factor in determining whether you can save money or carbon emissions when compared to alternative methods of heating your home.

While their source of warmth is solar energy in the ground, a GSHP is in reality an electrical form of heating, as it needs power to operate.

The core benefit lies in the fact that you get several units of heat output (measured in kilowatt-hours, kWh) for each unit of electrical input. The ratio between these gives you what’s known as the Coefficient of Performance (COP).

So, if a system runs at a CoP of three, this means it produces three units of heat energy for each unit of electricity.

Installing a Ground Source Heat Pump

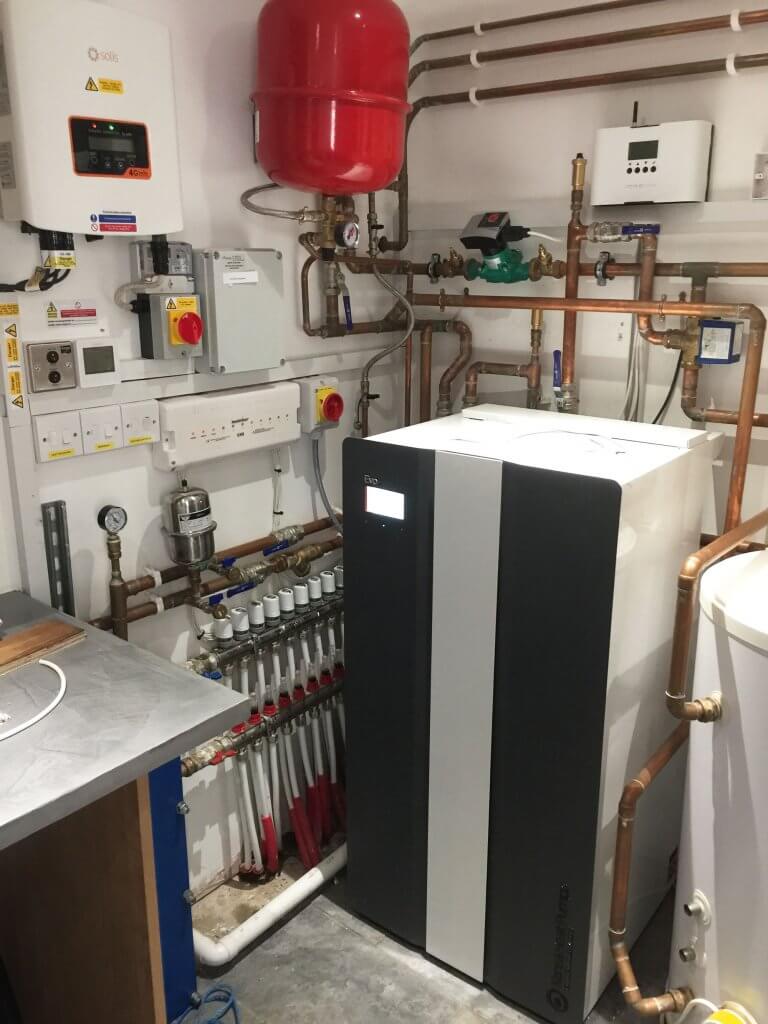

Most new build projects include a plant room to host the technology that goes into a modern home – as with this ground source heat pump installation by Chelmer Heating Solutions

The Seasonal Performance Factor (SPF) is another key figure to scrutinise. This sums up the ratio of total energy input to total heat output over an entire heating season. Research suggests an average SPF of three for ground source heat pumps (less if they supply domestic hot water as well as space heating, as the pump isn’t as efficient when raising water to higher temperatures).

But clearly some installations can achieve better results. The design of the collector loop, distribution system etc will have a big impact on the actual results you see – so ultimately
it’s the efficiency of the whole setup that really matters.

One criteria that’s often overlooked is an appliance’s lifespan. GSHPs contain very few moving parts, so should last for many years and require minimal maintenance.

How much does it cost to run a GSHP?

Electricity costs about three times as much as gas per kWh. So if your installation achieves the average SPF of three, it will prove similar to gas boilers in terms of running costs.

Your bills should be lower than using oil or LPG, though, and much cheaper than electrical resistance heating.

If the SPF is above three, then it begins to be cheaper to run than natural gas – but bear in mind the installation price will be more than for an equivalent boiler.

What happened to the RHI?

The Renewable Heat Incentive (RHI) was a government scheme that offered cashback payments through energy bills for installing renewable heating systems, such as ground source heat pumps.

Funded through general taxation and overseen by Ofgem, the scheme closed to new entrants on 31st March 2022.

It provided a payment per kWh of heat generated by a qualifying heat pump installation or similar renewable technology. The RHI payments were available for seven years – so some homeowners will continue to receive cashback on their heat pumps until 2029.

From April 2019, the tariff for GSHPs is 20.89p per kWh (compared to the cost of gas at around, say, 4p/kWh). They adjust the amount that you’re paid to take into account the electricity required to run the pump.

RHI payments were capped at 30,000kWh annually for ground source heat pumps. This was higher than for air source heat pumps or biomass, to reflect the higher installation cost of GSHPs.

In 2019, for instance, the RHI tariff was 20.89p/kWh. If your heat pump reached the 30,000kWh cap, the maximum subsidy would therefore have been £6,267 per annum (before deductions for the electrical input).

Over seven years, the RHI could therefore fully subsidise the cost of installing a heat pump for some homeowners. In practice, a well-insulated home won’t have such a high heat demand, so the savings were often considerably smaller.

The RHI has now been replaced with the Boiler Upgrade Scheme (BUS).

Renewable Heat Incentive (RHI) Payback on GSHP Installations

Traditional Fuel Replaced

Payback Period for GSHP with RHI

Payback Period for GSHP without RHI

Estimated Annual RHI Payments

Direct Electric Heating 6-8 years 12-18 years £2,610-3,940
New Oil Boilers 12 years 29 years £2,610-3,940
New Gas Boilers 14 years 47 years £2,610-3,940

Source: Local Government Association (2016)

Boiler Upgrade Scheme (BUS) grants for ground source heat pumps

Launched in 2022 to replace the RHI, the Boiler Upgrade Scheme (BUS) is a voucher scheme that covers some of the cost of installing a renewable heating system. It is open to both home renovators and self builders creating a new house.

As of September 2023, the BUS grant for ground source heat pumps is currently £7,500. This payment is higher than for air source heat pumps or biomass boilers (which are set at £6,000) to reflect some of the increased cost of installing a GSHP.

If you are installing your heat pump into an existing house, in order to be eligible you will need to have an EPC done and to carry out any recommendations for loft or wall insulation upgrades.

Homeowners and self builders can apply for the Boiler Upgrade Scheme vouchers through their heat pump installer.

Eco-Friendly Coastal Home in West Sussex

self build exterior

Tenacious developer Rob Hall and his partner Cecilie Jacobsen had their hearts set on creating a three-storey family home in an idyllic coastal village in West Sussex.

They wanted to make it as eco-friendly as possible, so they installed a ground source heat pump.

Three 120m deep holes were drilled in the back garden for the system and two sturdy retaining walls were constructed deep inside the earth on either side of the plot, using 7m contiguous reinforced concrete piles.

Learn more about the couple’s experience here

Heat pump installation costs

Fitting a GSHP requires substantial groundworks for the collector loop (with vertical boreholes more expensive than horizontal types).

Costs can range from £20,000 to £35,000+ for a typical domestic installation. Prices depend on the size, the property’s heat demand, the type of collector, and how much of the distribution system is included.

If your installation is eligible for the Boiler Upgrade Scheme, you can save £7,500 on the cost of fitting a ground source heat pump.

Note that, if your heat pump is replacing a non-electrical heating fuel (like gas or oil) in a large building, the extra electricity demand to run the GSHP may require an upgrade of the local power distribution system.

This will add to the cost and overall environmental impact of the installation. That said, low upkeep can help to reduce ongoing impact.

Would a GSHP suit my project?

Well-designed ground source heat pumps are appropriate for new homes or existing homes with significant garden space.

That’s because they require either a substantial area of unshaded ground (approximately 10m of trench per 1kW of heat energy produced) or access for a drilling rig for vertical boreholes.

Ground conditions can also make a big difference to both cost and viability.

Read our guide to ground source heat pump system design for an in-depth look at how to plan the most efficient GSHP setup for your home.

The technology works best when combined with an underfloor heating system (UFH) or oversized radiators. UFH runs at a lower water temperature than conventional radiator systems, so they require less energy to heat.

So if you’re not planning to upgrade emitters in an existing home, a GSHP probably won’t be appropriate.

The bottom line is you should work with a specialist to identify the right solution. Each situation is different. When looked at in the widest perspective, GSHPs are likely the most cost effective option when you are not using mains gas.

But in ultra low-energy homes where you don’t need much heat anyway, the fitting costs may lead you to an alternative.
