Graven Hill’s Plot Passport Explained

With the Plot Passport scheme you can get permission to build your bespoke home in just 28 days
by Build It magazine
4th November 2018

A key goal at Graven Hill was to deliver a scheme that looks different to typical UK housing developments by supporting the individuality and creativity that defines self building.

It was also important to come up with a streamlined planning process, to help take away the ambiguity associated with traditional routes to finding a viable plot. To achieve this, and retain some control over the look of the development, Graven Hill uses a unique approach.

Cherwell District Council decided to adopt a Local Development Order (LDO) to grant permission in principle for Phase 1 of the scheme, according to a Masterplan and Design Code. This is the first time an LDO has been used to enable new build housing and, given its success so far, it is expected to be extended to the rest of the project.

This approach allows for a swifter and more certain planning process for plot buyers: rather than applying for full consent, self builders in effect seek confirmation their scheme complies with the site’s restrictions.

3D Render of the Self Build Education House by Build It magazine

Build It magazine’s Self Build Education House is a real-life, access-all-areas project that will give you a unique insight into the process of creating your own bespoke home.

We’ll be sharing the full story of our journey through the Self Build Education House’s design and construction phases – including the inevitable highs, lows and learning points along the way.

Learn more about our project: Build It’s Self Build Education House

For self build plots, this has been facilitated by Plot Passports that spell out the specific parameters that apply to each site.

“Behind each passport is the Design Code, which talks about 11 different Character Areas,” says Karen Curtin. “The zone you build in determines how much design freedom you’ll get.”

For instance, the Tree-lined Boulevard has very few limits on materials and boundary treatments, but restrictions are in place on minimum building heights and the position of main facades.

For homes in the Village Centre and Rural Lane zones, you must pick from a menu of external materials; although there’s still a broad choice available.

What is a Plot Passport?

Every self build site comes with its own Plot Passport, which sets out everything you need to know about that particular piece of land. You can access each site’s passport on its respective page in the ‘Find a Plot’ section of the Graven Hill website.

This includes the size of the plot, the maximum gross internal area (GIA) you can build, where on the plot the house should be situated, how tall it can be, permitted external materials, where services come into the site and a host of other vital information. Having this all in one place means you can tell at a glance whether the plot will meet your needs before you reserve it.

Graven Hill plot passport

The beauty of the Plot Passport is that, if your design falls within all of the guidance, you’re guaranteed to get planning permission. “If you comply with the rules, the local authority has to say yes,” explains Karen.

Not only that, but it will be fast-tracked and your consent will be rubber-stamped within 28 days (as opposed to at least eight weeks with the traditional route). You can also access Cherwell District Council’s pre-application advice service to gain even greater certainty about your scheme and ensure a smooth start to your self-build journey.

Plot Passports aren’t required for Tailored Finish properties, as full planning consent is already in place for these homes, which will be delivered by Graven Hill.

How to fast-track your planning application

  • Follow the rules and guidelines set out in the Plot Passport carefully.
  • Obtain pre-application cost/budget advice.
  • Commission a qualified designer to produce your drawings.
  • Seek pre-application advice to clarify any queries.
  • Finalise your plans and submit a formal application.
  • Once the application is registered, a compliance check is undertaken. Confirmation of planning permission should be received within 28 days.

What’s in a Plot Passport?

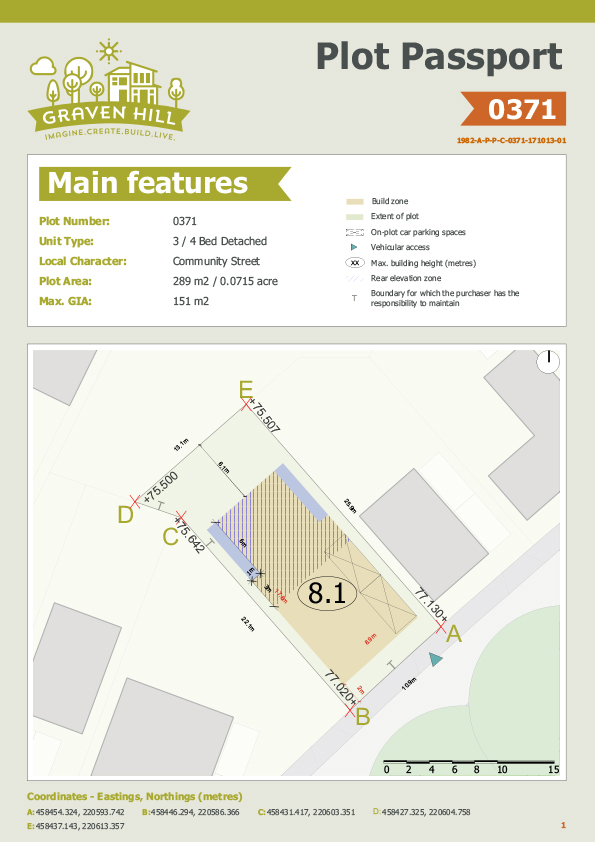

Each passport takes the form of an eight- or nine-page document detailing the information you need to complete your home successfully. The key elements are:

Main features

At-a-glance summary including number of bedrooms allowed, Character Area, sizes of the plot, maximum gross internal area, build zone, access point, parking space locations and ridge height restrictions.

Rules of your build

A detailed breakdown of the parameters your build must adhere to, including aspects such as whether the principal elevation must front onto the highway, use of permeable driveway materials, balcony design, boundary treatments etc. This section also includes details of sustainability requirements (see the box, below, for more on this).

Material palette

Design Code guidelines for treatments to the facade, roof and accent materials. For instance, if you want a brick wall finish on a Rural Lane plot you might be able to use units of a deep red/orange hue to reflect the vernacular, white-painted bricks, or examples in deep pink/orange to match existing buildings on Graven Hill. If a Character Area has no set materials palette, you can apply for whatever you like.

Ground conditions information

A report on the nature of the site and a recommendation on the probable foundation type (eg strip, trenchfill or piling), based on borehole and trial pit testing undertaken by the Graven Hill Village Development Company. This will only change if your design necessitates it or unexpected issues are found during the groundworks.

Services provision

Details of the utilities that will be provided, how these enter the plot and the connection strategy for self-build projects (including what Graven Hill will provide, and what you’ll need to organise).

Energy performance criteria

Most self builders want to attain a good level of energy efficiency to ensure long-term low running costs.

At Graven Hill, there are some specific – but eminently achievable – performance requirements over and above what’s laid out in the Building Regulations. These include:

  • Structural envelope Walls, ground floors and roofs must have a U-value of 0.15 W/m2K or less.
  • Windows Must achieve a U-value of 1.4 W/m2K or less, and a solar gain factor (g-value) of 0.50-0.70.
  • Airtightness Maximum air leakage of 3m3/hr/m2 at 50 Pascals (to be pressure-tested on site).
  • Ventilation Good-quality mechanical ventilation and heat recovery (MVHR) is required, with an efficiency of at least 70% as well as a power consumption of below 1.5 W/L/s.

The Design Code also recommends the inclusion of solar photovoltaic panels if the planned house’s roof orientation is suitable, but this is not a requirement.
