The Benefits of Beam and Block Flooring

Durable and quick to install, this system could be the best choice for your self-build project – and not just for the ground floor, says Mike Hardwick
Build It expert Mike Hardwick
by Mike Hardwick
23rd May 2018

One of the best decisions I made when self-building my own house was to specify beam and block intermediate flooring.

In this article I thought I’d expand on the subject and explain in detail why this system is such a good choice, not just at ground floor level but also for upper storeys – at least where it’s practical for your scheme.

Oversite options

Once the footings are in, you’ve got a choice in terms of what you use as the platform (the oversite) on which your home will be built.

Years ago, the simplest solution was to fit timber joists covered in floorboards. But suspended timber structures can be draughty and noisy, so they won’t suit modern self-builds, where decent levels of insulation and airtightness are required.

The most straightforward option today would be a concrete slab laid on top of compacted hardcore. The latter would be covered with a layer of sand (known as blinding) to protect against sharp edges, plus rigid foam insulation on a damp proof membrane.

While this is a common choice, the labour requirement is reasonably high – plus you’ll need to wait for the concrete to cure before work can continue.

New systems appear all the time. Fully-integrated insulated slabs are now a popular choice on high-spec eco homes, for example. Even more common, however, is the use of beam and block for the oversite – and potentially intermediate floors, too.

What is beam and block?

The system comprises a series of inverted T-beams made of pre-stressed concrete, which look remarkably similar to train rails in profile. These beams are cut to a specified length – determined by the construction drawings.

On site, they are laid perpendicular to the supporting blockwork walls that make up the inner leaf of the footings (at ground floor level). The rails rest on a damp proof course and have a 100mm bearing; in other words, they cover the whole width of that inner leaf of blockwork.

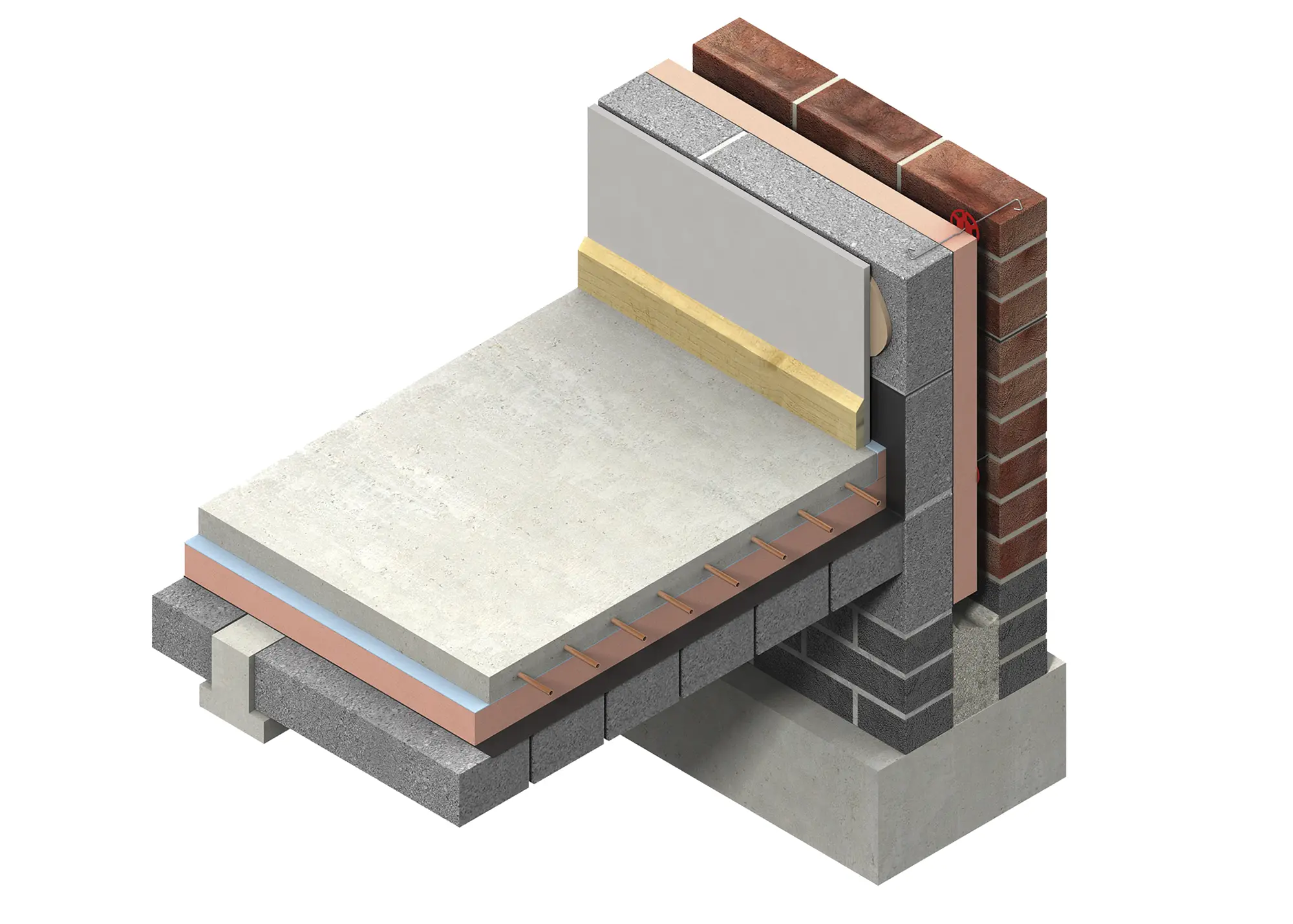

Kingspan's Beam and Block system

This diagram by Kingspan shows how high-quality insulation can be combined with beam and block floors in a screeded setup to maximise the efficiency of underfloor heating

Source it: Browse more insulation options from Kingspan

The beams are laid at suitable centres to allow them to be filled with standard-sized lightweight aircrete or dense aggregate blocks, until the whole slab area is covered. The floor structure is then brushed over with a 4:1 dry mix of sharp sand and cement to fill the gaps. Because this is an entirely dry process, in that no mortar or adhesive is required, as soon as the slab is laid, it forms a instant working platform, ready for your follow-on trades.

Each installation will be tailor-made to suit the project by the supplying company. The system will come with detailed plans that show the layout and orientation of the beams, the specification of blocks to be used and any relevant construction details.

Why use beam and block?

One of the main reasons is simply speed. Beam and block is very quick to install – partly because there’s minimal need for ground preparation. The resulting labour savings make it very cost-effective, too, despite the slightly higher cost of the materials.

There are other benefits to bear in mind; including improved acoustic performance, higher thermal mass and greater fire resistance. What’s more, because the beams and blocks are inert material, they are unaffected by damp, rot or vermin.

They can also be used with all structural systems at ground floor level, from masonry and insulating concrete formwork (ICF) through to the various timber frame methods.

What do I need to consider?

The beams themselves will be pre-stressed, which means there will be an inbuilt camber, or curve. The longer the beam, the more pronounced the bowing will be.

This is not a problem if the floor is to be screeded, as the finished floor levels will be easy to adjust. Rigid insulation is applied on top of the beam and block structure – to reach the performance spec for your project – before the screed is applied.

Installation may be trickier if you fit a floating floor of decking sitting on rigid foam insulation, because the levels will not be even at finished floor height and unsightly gaps can appear under the skirting boards. I would always advise going for a screed to avoid this problem – although you can apply a self-levelling compound to get a more even result.

There is also a limit to the length of rail that can be used; the biggest span will be just under 8m, depending on the beam profile specified. Any more than this and the floor will develop an unpleasant bounce, so additional support in the form of dwarf walls or reinforcing pillars may be required.

One of the advantages of beam and block versus a traditional floor slab is that very little excavation is needed. All that’s required is a minimum gap of 150mm between the soil and the underside of the beams to allow for ventilation.

This can be easily taken care of with a bit of site levelling. Air is admitted into this space by the use of cranked ventilators, positioned at regular intervals around the perimeter at damp proof course level. The vents have a Z-shaped profile that allows air in but keeps light out, thus stopping unwanted vegetation from growing under the floor.

Upgrade options

There are a number of variations on the theme. Probably the most popular is the use of formed rigid insulation blocks in place of the standard aircrete or dense concrete units.

Strength is restored by the use of a reinforced concrete topping instead of a simple screed. This helps to improve energy performance and reduce thermal bridging, while delivering a thinner floor profile – all at relatively little additional cost. These systems can therefore be a good option if you’re aiming to achieve low heating bills.

Wood-clad rural home on a sloping site
John Ritchie chose a beam and block floor to create a rigid concrete box for the ground floor of his self-build, with a timber frame sat on top
Contemporary Scottish self-build kitchen
This created good sound insulation between the floors and made it easier to install UFH upstairs. Click the images and read the full story

Beam and block for intermediate flooring

Some of the system’s biggest advantages come to the fore at intermediate level (eg for first floor structures), where it can replace traditional suspended timber or engineered wooden joists.

This isn’t possible with all building methods because of the additional weight it imposes – instead, this floor solution is best suited to construction techniques that can more easily accommodate the extra loads, such as brick and block, thin-joint or ICF.

The many benefits of installing an intermediate beam and block floor structure in your scheme include:

  • Better acoustic insulation: The density of the floor materials helps to deaden sound transfer across storeys; so noisy children (or indeed adults) won’t be able to disturb your peace.
  • Increased fire resistance: Beam and block floors are resistant to fire; they won’t deform, twist or collapse when exposed to high levels of heat. This means there’s more time to contain any outbreaks and more options for escape or rescue.
  • Freedom of layout upstairs: Because the floor is able to carry higher loads, you can choose to use blockwork for any partition on the upper storey – not just the supporting walls. That means you can incorporate solid structures wherever you want, so you won’t have any difficulty hanging shelves or wall-mounting TVs.
  • Underfloor heating is easy to install: While products designed for lightweight floor systems have improved greatly, a screeded setup is still the most efficient option for warm water underfloor heating (UFH) as it turns the entire floor into an emitter. With beam and block intermediate flooring, UFH is just as easy to fit – and just as effective – on an upper storey  as it is downstairs.
  • No squeaks: Because there’s no floorboards or decking required, you will never suffer from that bane of modern housing stock: the creaky floorboard.

Are there any downsides?

There aren’t many negatives to using beam and block at higher levels, but there are a few things to consider.

As I’ve already mentioned, it’s not suitable for lightweight timber frame construction – unless, that is, your team inserts additional (expensive) supporting structures. So if you wish to fit this type of intermediate flooring you’re basically limited to masonry construction. You will probably also need to hire mechanical lifting aids, as the beams can be pretty hefty.

One of the most important things to think about is where the services will run. You can’t simply notch a concrete rail like you would with a standard timber joist, nor can you run pipes and cables through it as you might with an open metal-web engineered floor.

Read more: Complete Guide to Connecting to Services

There will be plenty of clear space beneath the blocks, running in parallel with the beams – and even more after battening out for the plasterboard ceiling. But getting services to run perpendicular to this, especially larger diameter items such as soil pipes or ventilation ducts, can be challenging.

It’s all solvable with proper planning, however; fitting counter-battens under the pre-stressed beams (and above the plasterboard finish) will usually offer sufficient space.

Top image: Available in depths of 155mm and 225mm, the easy-install ReadyFloor suspended system from Cemex consists of pre-stressed concrete beams, with standard blocks for the infill
