Waterproofing a Basement: Everything You Need to Know

Want to build below ground as part of your new home project? Basement waterproofing is key if you want to make the most out of a subterranean living space and ensure it lasts for years to come. Here’s your essential guide to the key options, costs and considerations
Anna-Marie DeSouza
by Anna-Marie DeSouza
18th February 2024

Maximising space is likely to be high on the wish list for those of you self building a new home. One way to do that is to include a basement storey. If this forms part of your plans, it’s essential to prioritise waterproofing your basement from the outset, ensuring its longevity and structural integrity.

A properly protected basement ensures a dry, safe and habitable space that will give you peace of mind long into the future. So, what are the key factors when waterproofing new build basements, why is it important to engage certified waterproofing designers from early on in the project, and what are the associated costs?

Here we’re taking a look at the key considerations to ensure you get your basement waterproofing done right at the start of your project.

Employ Certified Basement Waterproofing Designers

Before delving into the technicalities of waterproofing, it’s imperative to understand the importance of involving certified waterproofing designers from the very beginning of your scheme in order to get the outcome you desire.

“It is now a condition that a waterproofing designer or a waterproofing expert be involved in self build projects,” says Anthony Spinney of Glatthaar. “An expert will craft the right solution. What are you are prepared to accept? Do you want a dry, warm environment, or are you happy with a basement that potentially has continuous water ingress that has to be managed by a pump 24/7?”

Read More: Basement Conversions: 10 Steps to Successfully Converting Your Cellar

Waterproofing a Basement: Everything You Need to Know

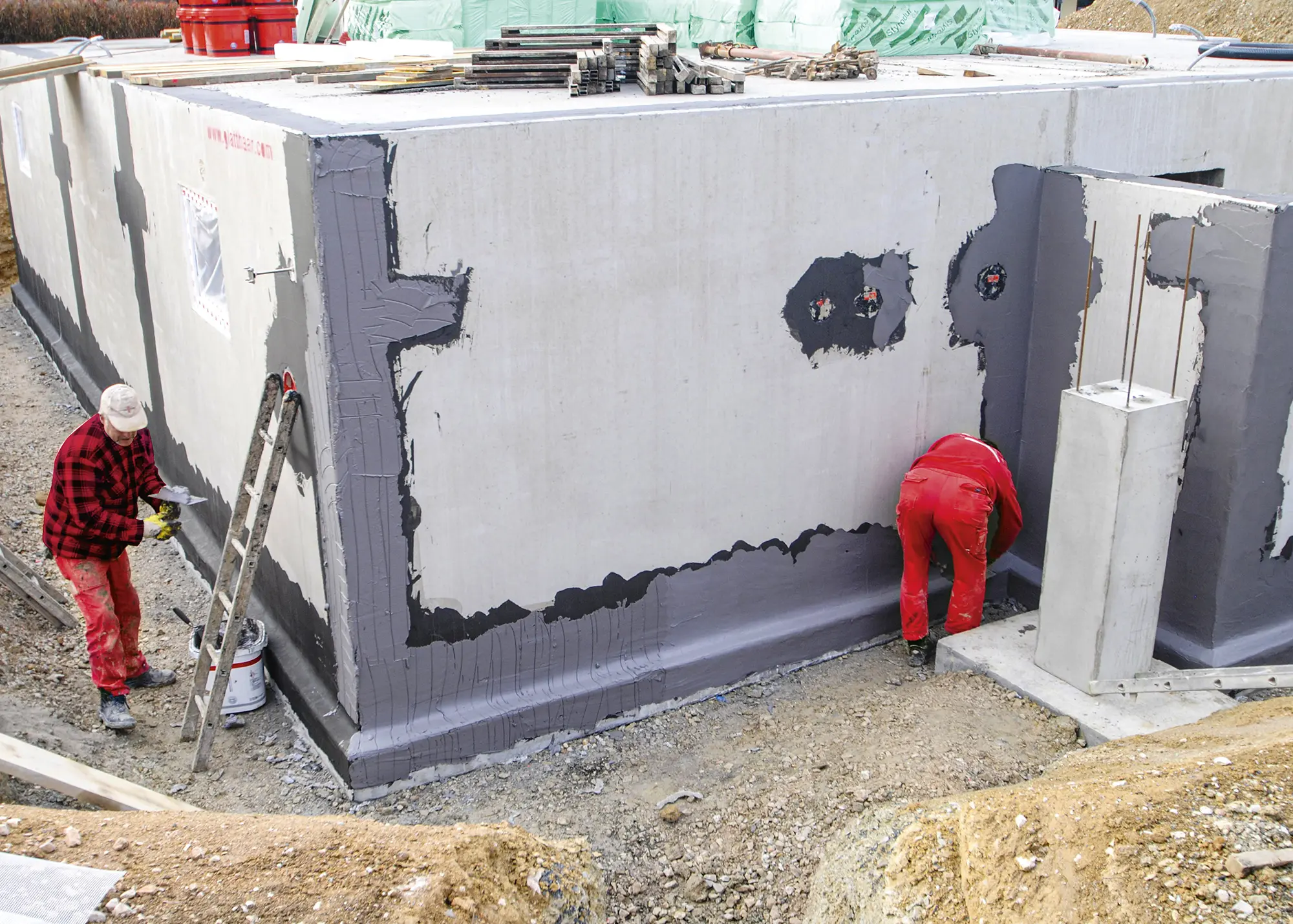

Glatthaar Keller specialises in creating prefabricated basement systems, which do not need internal water management as they are designed as a waterproof construction

Waterproofing is a specialised field that requires expertise to ensure a robust and effective solution. Certified professionals understand the intricacies of different soil types, water table levels, and construction materials, allowing them to design an effective system that’s tailored to the specific needs of your project.

The involvement of a certified waterproofing designer at the initial stages of planning is vital for several reasons. First and foremost, it ensures that the strategy aligns seamlessly with your overall construction and build timeline. Furthermore, your building warranty provider will want to have proof of your expert’s credentials. “Years ago there were a lot of failures with new build basements, but the regulations and guidelines have changed, largely thanks to the Property Care Association (PCA).

This means that a certified expert is now a requisite,” says John Spearman of Surrey Basements. “Building Regs and building control will require a guarantee from an installer. And a warranty provider will also ask for the details of the waterproof design specialist. If they are brought in at a late stage when it is all built, it’s too late.”

CLOSER LOOK Understanding your site for a well-waterproofed basement

Before a waterproofing specialist can specify the best system for your basement, a thorough site investigation regarding geology, hydrogeology, and topography is crucial to ensure an effective solution is chosen. Geotechnical investigations will help to evaluate the composition of the soil, its bearing capacity and other potential issues – including the presence of expansive clay, for example.

Hydrogeological assessments are equally vital to assess groundwater conditions – these levels can be influenced by various factors. For instance, a sudden heavy rainfall or a burst water pipe may create a perched water table, and this might not be evident during routine investigations. Here, the role of your waterproofing specialist is to design for a full head of water pressure; this is a safety measure that helps to protect your basement against unforeseen circumstances.

Topographical considerations are also significant. Examining the surface features and the slope of your site will help to understand how water may flow around and impact the basement structure. By accounting for these aspects in the design phase, a waterproofing system can be tailored to address potential challenges related to water ingress.

Essential Advice: House Foundations & Groundworks: Your Guide to Building Foundations

The Different Types of Basement Waterproofing

Several waterproofing solutions are available for new build basements, each catering to specific needs of the site and the home to be built. Considerations must be made regarding soil conditions, water table levels and the intended use of the basement space.

Waterproofing a Basement: Everything You Need to Know

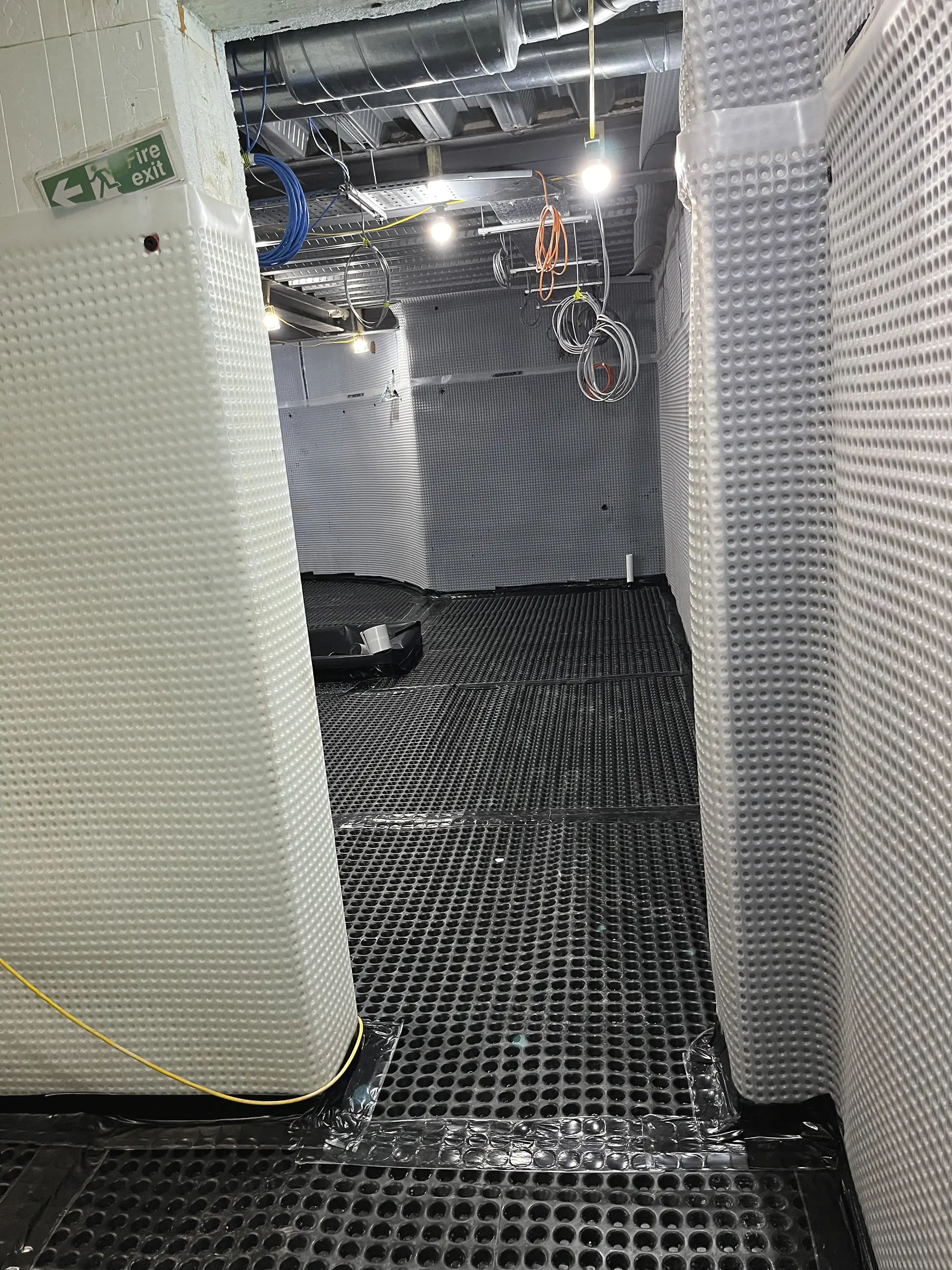

This self build project at Graven Hill in Bicester incorporates both Type A and Type C protection. A liquid damp proof membrane (dpm) was applied first, before the eggcrate-style cavity drainage membrane system was installed

Your method for waterproofing will be guided by your specialist, who will be following the recommendations within the BS 8102:2022 Code of Practice for Protection of Below Ground Structures Against Water Ingress. This document outlines the different types of waterproofing available and what standards need to be achieved for a robust and functional structure.

There are three types of protection commonly used – Type A, Type B and Type C.

  • Type A is a barrier protection method. For external applications, the waterproof membrane or coating is applied to the exterior walls in order to prevent water penetration from the outside. For internal protection, this comprises the application of a waterproof membrane or tanking system to the internal surfaces of the basement walls.
  • Type B is all about structural integration, where the basement is formed as an impervious structure using waterproof concrete – this means it is inherently resistant to any water penetration.
  • Type C is drained protection where, in most cases, a cavity drainage membrane (CDM) is added to the walls and floor, allowing water to enter, hit the membrane and then be directed to a sump pump for removal. Type C systems should be designed to allow easy access for ongoing maintenance.

Read More: Getting Natural Light into Basement Extensions: Best Ways to Add Daylight

Waterproofing a Basement: Everything You Need to Know

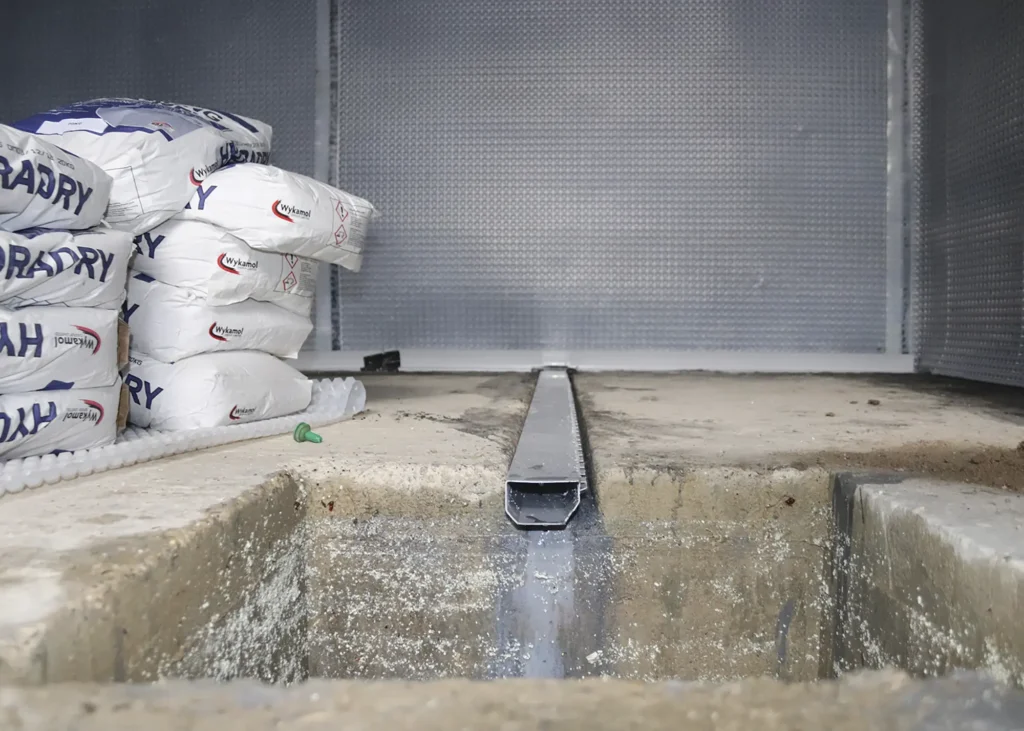

The perimeter drains converge at a sump pump chamber in the plant room at the Build It Education House. In the background, you can see the CDM waterproofing system

A waterproofing designer may well specify more than one type of system to ensure the build has multiple layers of protection. “With new builds, warranty providers ask for two of those systems to be used. Personally, I always make sure that there is Type C and one other,” says John from Surrey Basements.

“I would put in Type C as a fail safe. The other systems will drastically slow down the water that comes into the structure. But, for example, clay soil holds so much water, and this will be there for a long time before it dissipates – if it comes through it will cause damage. So, in this situation, a drainage solution would be a real benefit.”

How Much Does it Cost to Waterproof a Basement?

The cost of waterproofing a new build basement varies based on factors such as the chosen waterproofing method, the size of the basement, and the complexity of the project. While it’s challenging to provide a one-size-fits-all cost estimate, it’s essential to consider waterproofing as a valuable investment in the longevity and functionality of your home.

Waterproofing a Basement: Everything You Need to Know

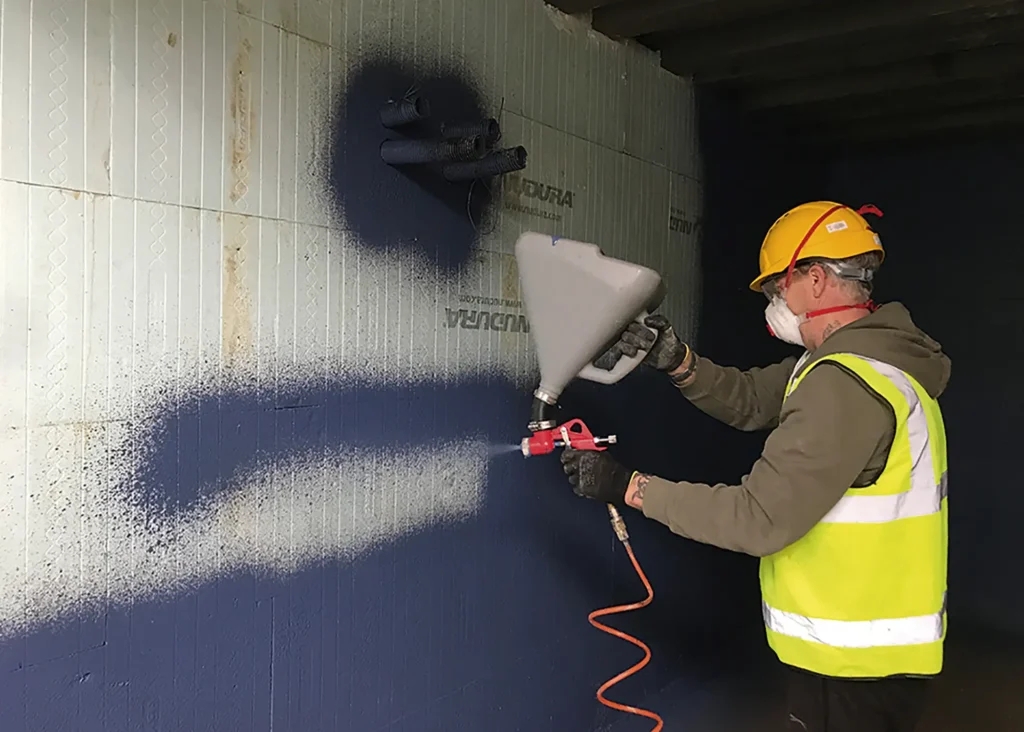

Surrey Basements apply the spray-on Type A wall tanking to the basement level at the Build It Education House

“It’s difficult to provide one standard cost for a type A solution due to the variety of products on the market,” says John Spearman from Surrey Basements. John goes onto explain:

The most basic type A system – a liquid applied system such as a liquid damp proof membrane or a slurry – could cost approximately £15 per m² for a coat. There are many other choices that’ll increase the cost drastically, though. For example, an external geotextile type A waterproofing system would cost approximately £35 per or £50 per m² for supply and install if doubled with a liquid damp proof membrane.

We also get asked a lot for a waterproofing membrane with additional qualities that can protect against ground gas. For this, a liquid system would cost £20 per , per coat for instance.

Clay-based systems such as Volclay bentonite systems, for example, cost around £20 more than geotextile systems per m².

For Type C, it will cost around £35 per m², but there is an additional cost because of the sump pumps and battery backup, plus drainage – I would suggest allowing for up to £3,000 for these elements. If you’re going for waterproof concrete, bear in mind this costs about £40 per m more than the price of standard concrete.

Learn More: How Much Does it Cost to Self Build a House?
