Eco-Friendly Timber-Clad Self Build in Buckinghamshire

Planning the Perfect New Home

Once planning permission was obtained, HebHomes provided the technical drawings and specifications needed by Stokenchurch Builders, who Tania hired to undertake the groundworks and other aspects of the build. “The company was recommended to me and have an excellent reputation locally. I was able to see examples of their work around this area, although they had never helped build a kit house like this before so found the project interesting.”

Tania decided to project manage the build herself. “I didn’t find it stressful at all. Being a kit house, you’re following a script so there are no hidden problems, which result in you having to fork out an extra thousand or two unexpectedly,” she says.

“HebHomes even supplied plans suggesting where electric sockets should be installed and provided suggested kitchen design and bathroom layouts. Plus, the builder had contacts when it came to the electrics, heating and other aspects of the build, which made project managing much easier.”

Although a kit home design, Tania changed two things: one of the windows downstairs is double the size of the original plan and a skylight was moved from one side of the house to the other

Stokenchurch Builders regarded themselves as lucky when preparing the footings. Expecting to find pockets of clay, they were relieved when they hit sand. As the footings were being prepared for a kit home, it was crucial that the panels were erected on a dead-flat plate, which was confirmed by a representative from HebHomes.

When the SIPs (structurally insulated panels) arrived at the site on large lorries, Tania – who lived in a mobile home on site after her bungalow was demolished – says it looked like “an adult Lego project” was about to begin. The panels, being precise factory-built components, offer a high performing building fabric. This comes with a wide range of other benefits, too, including excellent sound absorption, plus the strength of the panels allow for thinner walls and, therefore, more floor space.

Read More: Building with SIPs: What Are Structural Insulated Panels & Are They For You?

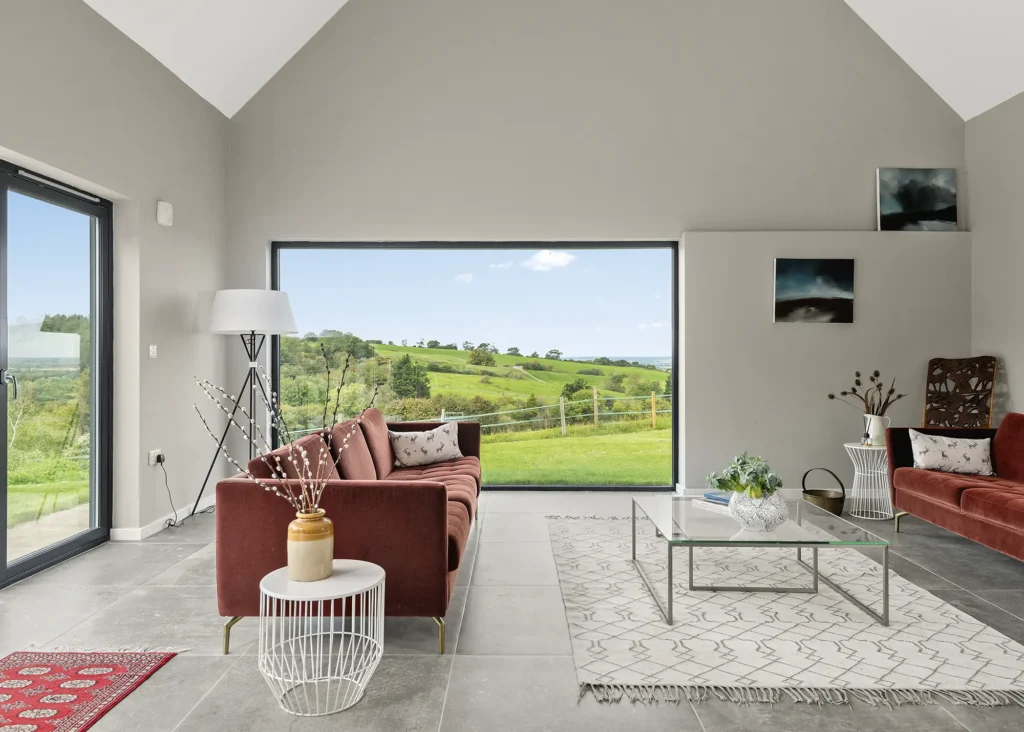

The home’s open plan style benefits from the abundance of natural light from the ample swathes of glazing

Within seven days, the HebHomes’ construction team had erected the main structure and added the corrugated steel roof, leaving Stokenchurch Builders and Tania to complete everything else, from the water-based underfloor heating and electrics to plumbing and tiling. “When HebHomes told me it would take seven days, I didn’t think that was possible – but they were right. They worked solidly, including the weekend, and got the job done.”

The Build’s Structural Details

Among the most important elements of the design, according to nature-lover Tania, is the use of large double-glazed NorDan windows, particularly within the main living area. “For me, having huge windows like these makes me feel as if I’m within the natural world – plus they allow light to flood in.”

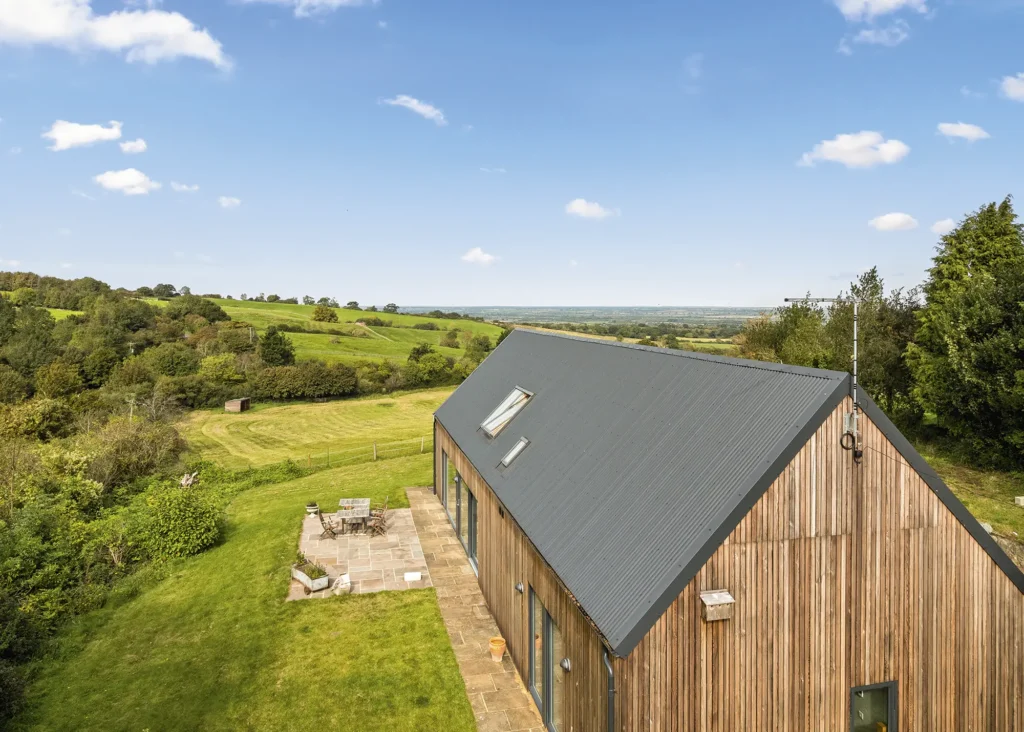

The chosen mix of timber cladding and steel on the exterior helps the build to blend perfectly with the surrounding countryside

Tania’s other design priorities included the use of exterior wood cladding and a corrugated metal roof – she felt these elements would help her new home to blend in with the surrounding rural environment. “I wanted the house to look like a barn,” she says. “Once the larch cladding has fully weathered, its silver look will help me achieve that.”

Initially, the cladding was orange and to tone it down Tania torched the wood – a process she’d seen on a property programme. “We wanted to give the wood strips an aged, wabi-sabi look with more depth. The builder showed me what to do and with the help of my children and friends, we spent three weekends blow torching every piece of larch before it was fixed to the frame.”

More Ideas: Timber Cladding Design Ideas for Your Self Build Project

Water & Heating

As a bungalow had stood on the plot previously, connecting the utilities didn’t pose any significant problems. However, when it came to linking up with the mains water – which emerges from the nearest property, some 600 yards away – the builder floated the idea of building an entirely new mains system. Cost constraints meant an alternative was required, however, so to improve the supply of water to the new house, a storage tank was installed within the utility room, holding 80 gallons of cold water.

Heating is supplied via a Samsung air source heat pump system, which not only provides warmth to the water-based underfloor heating system downstairs, but also to thermostat controlled radiators upstairs. “It’s perfect because it virtually runs itself. Every room has a thermostat so you can set the temperature; the air source heat pump kicks in when it drops below that level. It’s an efficient system that is easy to control, too.

“We also have a woodburning stove. Although, I don’t really use it for heating as it’s not needed, other than on the occasional dark, cold winter’s evening when you want the added comfort of a warming glow,” says Tania, who is rightly proud of her modern, light-filled four bedroom home, comprising 12 rooms. While there are two bedrooms and a bathroom upstairs, downstairs boasts a boot room, plant room, store room, large kitchen/diner, two bathrooms, office, snug, lounge and a further two bedrooms, one of which has been converted into a snug/study.

“I wanted to do something different and be an inspiration for other self builders because if I can do it, anyone can. Now I have a brilliant, eco-friendly house with big windows, beautiful spaces and seamless living. The estate agent, who had originally advised me against opting for a kit home, told me it was the best thing he’d seen in a long time.”

Thinking about the package home self build route? Read our guide to Design & Build: Package Homes Explained

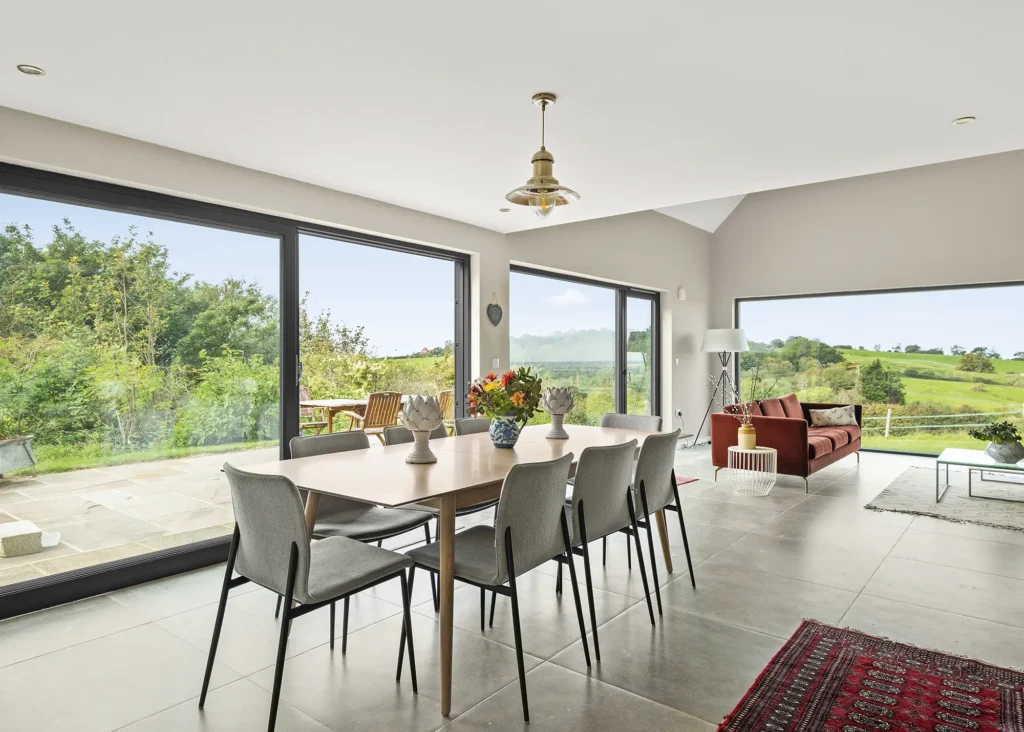

Thanks to plenty of glazing and an open-plan layout, the home’s interior always feels light and airy, making the perfect place to relax and take in the countryside views

Reflecting on the project, Tania – who’d consider self building again without hesitation – feels the best part of the development was having the control to create a home that not only suits her family’s needs, but involved her children in the decision-making process, too. “All of us making choices brought us closer together. My son selected the floor tiles, my daughter helped choose the kitchen design, and both of them had input regarding the bathrooms and the colours in their bedrooms,” says Tania.

“Having a blank canvas on which to create our perfect home, and then making important decisions, saw us bond as a family. Now, life couldn’t be better because we’re living in a space we helped to create together and we are loving every minute of it.”
